On May 16th, we made a shipment to Vietnam, it is 2 units of air cooled scroll chiller, with refrigerant type R32, this is eco-friendly type of refrigerant. Many countries prefer R410a and R32 for the consideration of environment protection, and we can do both of them, even R134a and R290 which are more eco-friendly. The data sheet is attached as below, more details are on display.
|
型号 Item No. |
LSFX29(10HP) |
||||
|
机组特性Parameters |
制冷量Cooling Capacity |
kW |
29 |
||
|
Ton |
8.33 |
||||
|
×103 kcal/h |
24 |
||||
|
整机功率Power |
KW |
9.58 |
|||
|
整机运转电流Running Current |
A |
17.4 |
|||
|
压缩机Compressor |
数量 QTY |
1 |
|||
|
额定功率Rated Power |
kW |
8.0 |
|||
|
额定电流Rated Current |
A |
14.8 |
|||
|
制冷剂Refrigerant |
类型Type |
- |
R32 |
||
|
节流方式Throttling |
- |
膨胀阀Thermal Expansion Valve |
|||
|
蒸发器Evaporator |
形式Type |
- |
水箱盘管Water Tank + Coil Pipe |
||
|
水管接口Water Pipe Port Dia. |
mm |
DN32 |
|||
|
水流量Water Flow |
m3/h |
4.8 |
|||
|
冷凝风扇Condensing Fans |
形式Type |
- |
轴流式 |
||
|
输入功率Input Power |
kW |
0.83 |
|||
|
冷冻水泵Cold Water Pump |
输入功率Input Power |
kW |
0.75 |
||
|
扬程Delivery Head |
mH2O |
24 |
|||
|
水箱标称容积Water Tank Capacity |
L |
131 |
|||
|
外形尺寸Dimensions (Including Casters) |
长Length(mm) |
1500 |
|||
|
宽Width(mm) |
860 |
||||
|
高Height(mm) |
1535 |
||||
|
整机重量Machine Weight |
KG |
440 |
|||

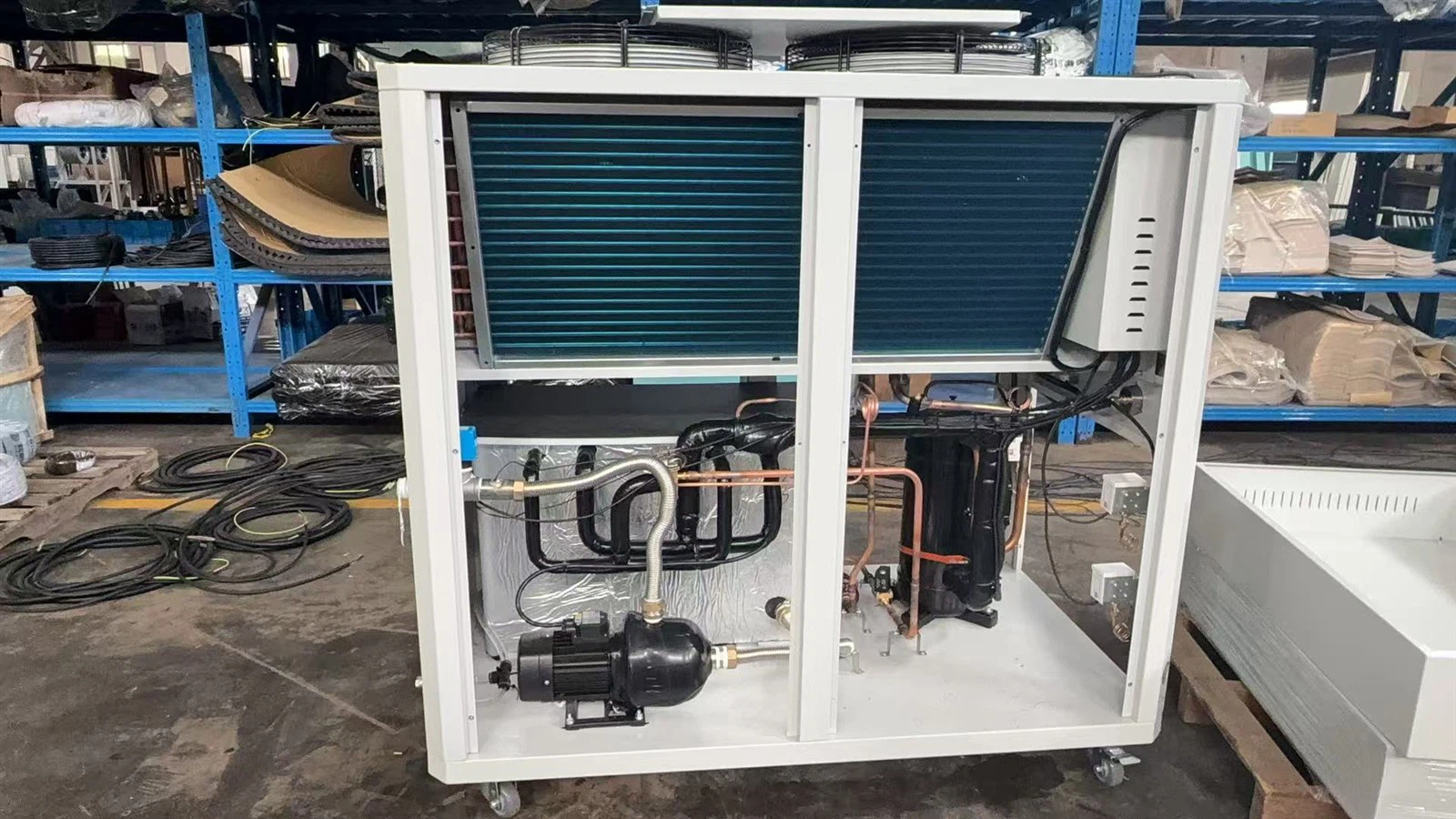

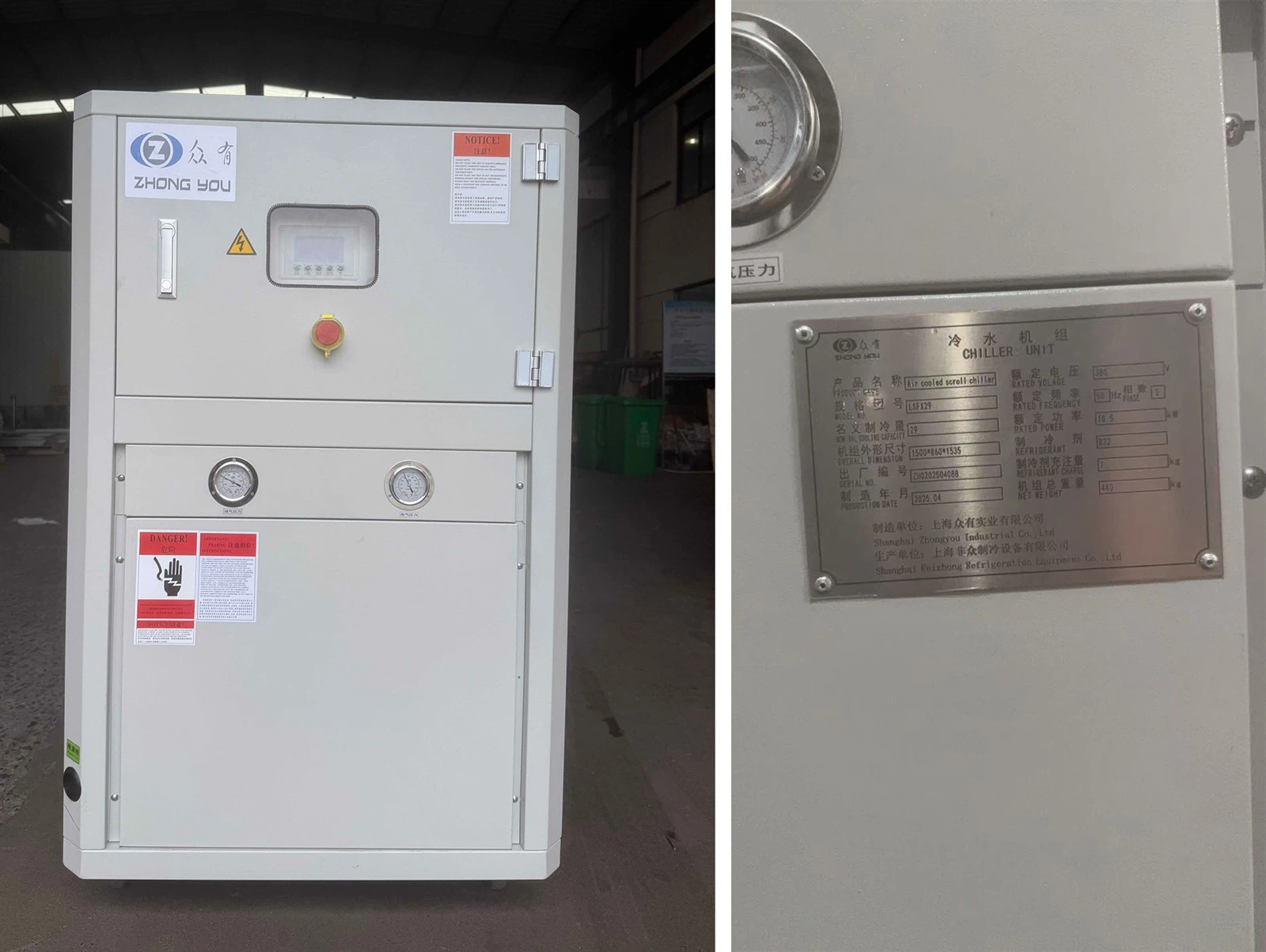

Here comes the photos of finished and half-finished product, and the label is on the body of the machine. And this is portable type which has universal casters, we do universal casters for the machines which is ≤15HP. We have some others buyers call it packaged chiller, because the chiller has water pump and water tank.

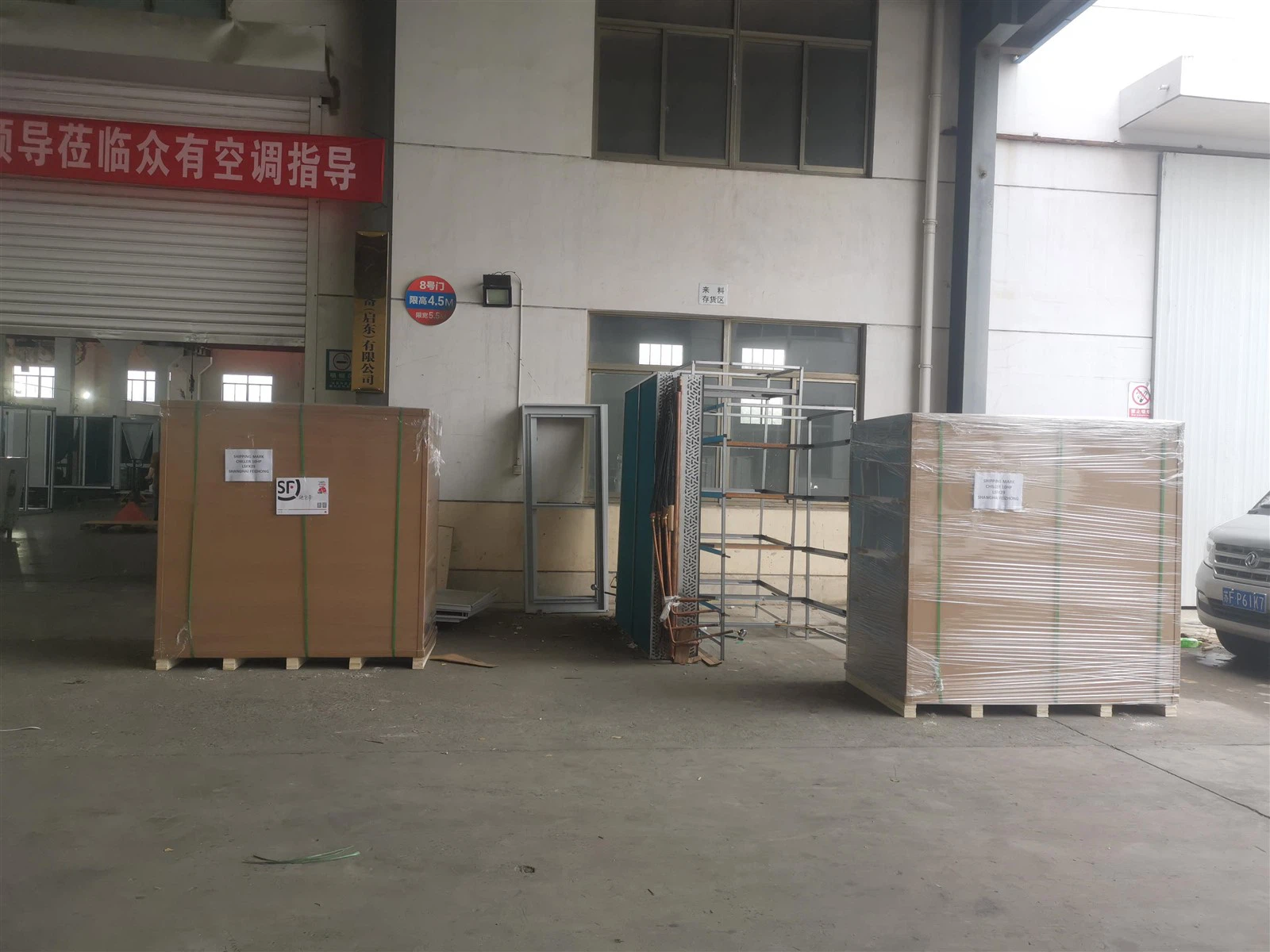

Now the photos of packed items. We use a pallet and carton to pack it., than fasten by the belt. Also the film is used for water-proof and dust-proof.
