Water System AHU Explained: Working Principles, Benefits, And Applications

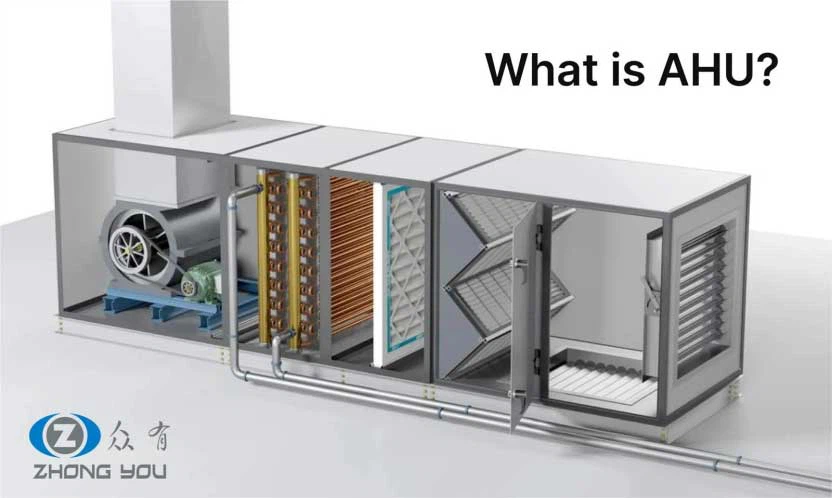

It's the Water System Air Handling Unit (AHU) - the true workhorse of central HVAC. As the core component, an AHU doesn't just blow air; it performs a whole series of critical tasks: filtering out dust and particles, cooling or heating the air, adjusting humidity levels, and even recovering energy from return air. In short, it ensures that the air you breathe indoors is clean, comfortable, and properly conditioned.

Unlike split systems that rely on refrigerant, the water system AHU uses chilled water or hot water from a central plant (like chillers or boilers). This water flows through a dedicated coil inside the unit. As a fan draws air across the coil, efficient heat exchange takes place - either removing heat from the air (cooling mode) or adding heat to it (heating mode). For humidity control, the unit can be fitted with additional components like humidifiers or dehumidification coils. With the help of modern smart controllers and sensors, the AHU continuously monitors return air temperature, supply air temperature, and humidity, automatically adjusting water valve openings and fan speed to match the actual load. This not only enhances comfort but also saves energy - for example, by mixing fresh outdoor air with return air instead of conditioning 100% fresh air all the time.

First, precision control. A well-designed water system AHU can maintain temperature within ±1℃ and relative humidity within ±5% RH - critical for applications like labs or pharmaceutical production.
Second, high efficiency. Water has significantly higher heat capacity and better heat transfer properties than direct refrigerant systems, especially in large or medium-scale projects, leading to real energy savings.
Third, wide application. Whether it's a comfort air conditioning project (hotels, offices, shopping malls) or an industrial process site (clean workshops, data centers, hospitals), water system AHUs adapt easily.
Fourth, easy maintenance. Modular design means filters, fans, coils, and even control panels can be accessed and serviced without tearing down the whole system. Cleaning or replacing parts is straightforward, reducing downtime.

Hospitals: operating rooms, ICUs, wards - strict hygiene and stable temperature/humidity are mandatory.
Pharmaceutical & food factories: to meet GMP or HACCP standards.
Commercial buildings: malls, offices, hotels - for consistent comfort and energy efficiency.
Data centers & telecom rooms: where cooling is needed year-round, often with precision humidity control.
Constant temperature/humidity labs: for research, testing, or material storage.
In short, any place that demands reliable, stable, and customizable air treatment - the water system AHU fits perfectly.

Feel free to reach out to us for custom design, size selection, or any further technical details. Our team is ready to help you find the optimal air handling solution - anytime!
