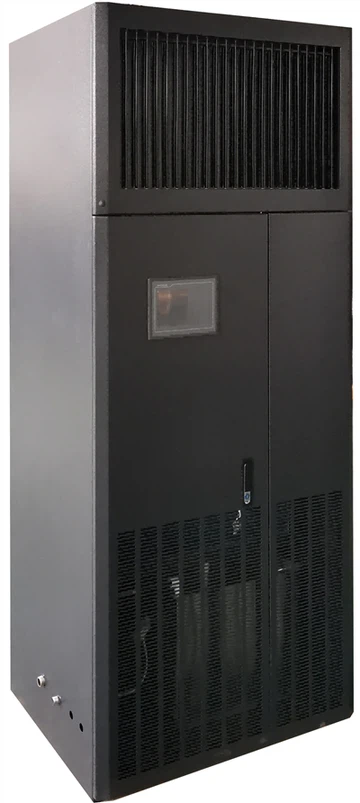

Electrode Type Constant Humidifier

The electrode type constant humidifier is the best way to maintain humidity in the computer room and archive room. ZYHS series special electrode type constant humidity machine adopts microcomputer control technology and functional modular design.

Dehumidification Capacity: 60L/D——360L/D
Humidification Capacity:4kg/h——10kg/h
Humidification Type: Electrode Type
Power: 220V-50Hz(380V-50Hz)
Usage Area: 50m2——600m2
Air Volume: 750——5000 m3/h
Fan Power: 0.15kW——1.1kW
Brand:Feizhong
Send Inquiry

Product Introduction Technical Parameter

Electrode type constant humidifier principle is that there are two positive and negative electrode rods inside the electrode humidifier. After electrification, it will pull the anions and cations in the water to form a current. The whole system becomes a closed circuit, and the water becomes the conductor in it. The temperature of the water will gradually increase until it boils and boils. The water forms a large amount of water vapor. Equipped with a remote monitoring system, the new design makes the equipment structure more reasonable and realizes the miniaturization of multi-functional equipment.

Electrode type constant humidifier Electrode type constant humidifier 2



Features and Advantage

1. The product adopts refrigeration technology for dehumidification, with high energy efficiency ratio and stable performance

2. Free setting of humidity, real-time display of actual ambient temperature and humidity 

3. Compact structure and easy maintenance. The frame structure of the unit is exquisite, the pipeline layout is reasonable and orderly, and the overall effect is excellent; the air system and refrigeration system are relatively independent structures, which are convenient for maintenance

4. The quality is stable. The key components of the refrigeration system are selected from high-quality products, and the electrical control components are controlled by imported electrical appliances with stable performance.

5. Humanized control, optimized energy-saving The unit adopts control technology, which has obvious energy-saving effect, strong humidity control ability, and high operating efficiency. It is equipped with multiple safety protection devices such as high and low voltage, overload protection, undervoltage and reverse pressure protection, and fault alarm output signal. Equipped with multiple operation and fault display functions, the operation is safe and stable

Note: The electrode humidifier cannot use deionized water, purified water or distilled water.

Send Inquiry

We have an advanced technical team and a professional after-sales department that can provide 24-hrs online consulting services.

We warmly welcome you to wholesale customized chiller made in China here from our factory.

Pls contact us for more details.

Hot Tags: electrode type constant humidifier, China electrode type constant humidifier manufacturers, suppliers, factory, industrial air ultrasonic humidifier, dehumidification and humidification all in one machine, industrial cool mist humidifier, Electrode Type Constant Humidifier, , industrial ultrasonic fogger

Model No.

ZYHS60-4D

ZYHS90-4D

ZYHS120-4D

ZYHS168-6D

ZYHS200-8D

ZYHS240-8D

ZYHS360-10D

Dehumidification

60L/24H

90L/24H

120L/24H

160L/24H

200L/24H

240L/24H

360L/24H

Humidification

4kg/h

4kg/h

4kg/h

6kg/h

8kg/h

8kg/h

10kg/h

Usage Area

50-80m2

80-150m2

100-150m2

140-200m2

150-300m2

200-400m2

300-600m2

Air Volume

750-1200 m3/h

900-1500 m3/h

1200-1800 m3/h

1800-2400 m3/h

2000-3000 m3/h

2500-4000 m3/h

3800-5000 m3/h

Fan Power

0.15kw

0.25kw

0.3 kw

0.3 kw

0.6 kw

0.6 kw

1.1 kw

Compressor Brand

Panasonic/LG

INVOTECH / DAKIN / LG

Compressor Power

0.885kw

1.13kw

1.7kw

2.7kw

2.93kw

3.52kw

4.37kw

Humidification Type

Electrode Type

Humidification Power

3kw

3kw

3kw

4.5kw

6kw

6kw

7.5kw

Power

220V-50Hz

380V-50Hz

Unit Dehumidification Power

1.1kw

1.4kw

2kw

3kw

3.6kw

4.2kw

5.5kw

Unit Humidification Power

3.15kw

4.2kw

3.3kw

4.8kw

6.6kw

6.6kw

8.6kw

Control Method

Micro Computer PLC

Monitor

RS485

Voltage Adaptation Range (%)

±10%

Phase Sequence Fault Tolerance

There has

Start Delay

There has

Filtration

Purification

G3

Exhaust Mode

Front return air

Top supply air

Front return air,Front supply air

Dimensions

615*525*1330

615*515*1555

850*600*1800

850*600*1800

950*620*1885

950*620*1885

950*620*1885

Weight

100kg

120kg

130kg

150kg

180kg

200kg

210kg
