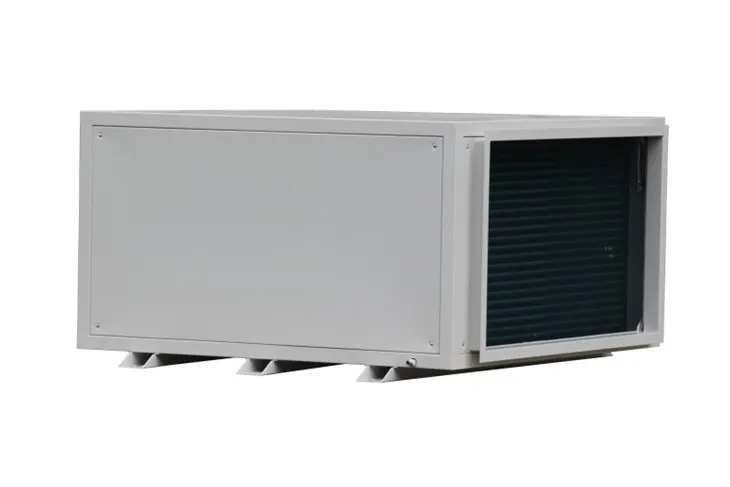

Roof Mounted Dehumidifier

Ceiling mounted dehumidifier(DCFZ-7/10/20) are a powerful addition to any commercial or industrial setting. Designed to remove excess moisture from the air, these dehumidifiers are ideal for a wide range of applications.

Refrigerant: R22
Power: 380V-3P-50Hz
Dehumidifying Capacity:7kg/h —— 20kg/h
Rated Input Current: 6.9A——16A
Rated Input Power:2.82kW——8.4kW
Working Temperature:5~38℃
Circulating Air Flow:2000m³/h——5600m³/h
Drainage Mode: Hose Continuous Drainage
Application Area (3 Meters High): 150——800m²
Test Working Condition: T=30℃; RH=80%
Send Inquiry

Product Introduction Technical Parameter

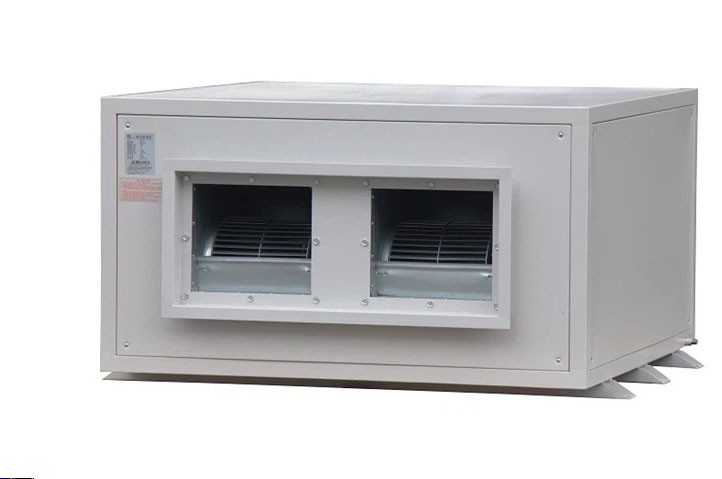

Ceiling Mounted Dehumidifier

Ceiling mounted dehumidifier(DCFZ-7/10/20) are a powerful addition to any commercial or industrial setting. Designed to remove excess moisture from the air, these dehumidifiers are ideal for a wide range of applications.

Their biggest advantages are ability to be mounted on a ceiling, freeing up valuable floor space below. This makes it an excellent choice for areas with limited space, such as small manufacturing facilities.

In addition to its compact design,they also incredibly efficient. With a powerful blower and advanced refrigeration technology, it can quickly and effectively remove moisture from the air, Strong dehumidification capacity, the ceiling mounted dehumidification can reach 20kg/h.helping to prevent damage to equipment and improve indoor air quality.

Overall,Above ceiling dehumidifier(DCFZ-7/10/20) are an excellent choice for any commercial or industrial setting that needs to remove excess moisture from the air. With its powerful performance and efficient design, it is sure to provide years of reliable service.

Feature & Advantage



1: Save floor space, dynamic display of humidity

2: 1% humidity precise control

3: Automatic frost function, 5 ℃ low temperature can be used

4: Compressor automatic delay protection for 3 minutes

5: Mute, time-saving, worry-free, and power-saving

6: Timing shutdown function

7: Fault indication function (code display)

Team
A



Application

1 4
1 3
1 11

1 1
1 8

Send Inquiry

We have an advanced technical team and a professional after-sales department that can provide 24-hrs online consulting services.

We warmly welcome you to wholesale customized chiller made in China here from our factory.

Pls contact us for more details.

Hot Tags: roof mounted dehumidifier, China roof mounted dehumidifier manufacturers, suppliers, factory, dehumidifier ceiling mount, Above ceiling dehumidifier, above ceiling dehumidifiers, Ceiling ducted dehumidifier

Model No.

DCFZ-7

DCFZ-10

DCFZ-20

Dehumidifying Capacity.

7kg/h

10kg/h

20kg/h

Power

380V~50Hz

380V~50Hz

380V~50Hz

Rated Input Current

6.9A

7.8A

16A

Rated Input Power

2.82kW

4.2kW

8.4kW

Working Temperature

5~38℃

5~38℃

5~38℃

Circulating Air Flow

2000m³/h

2800m³/h

5600m³/h

Drainage Mode

Hose Continuous Drainage

Overall Size(mm)

800(W)×650(D)×465(H)

1100(W)×1000(D)×580(H)

1300(W)×1200(D)×700(H)

Net Weight

90kg

110kg

180kg

Compressor Protection

Compressor 3 Minutes Automatic Delay Protection

Application Area (3 meters high)

150~220m²

220~400m²

500~800m²

Refrigerant

(R22)1.5kg

(R22)1.8kg

(R22)1.8*2kg

Running Noise

≤55dB

≤62dB

≤72dB

Humidity Range

30%~95%,±5%

30%~95%,±5%

30%~95%,±5%

Test Working Condition

T=30℃; RH=80%

T=30℃; RH=80%

T=30℃; RH=80%
